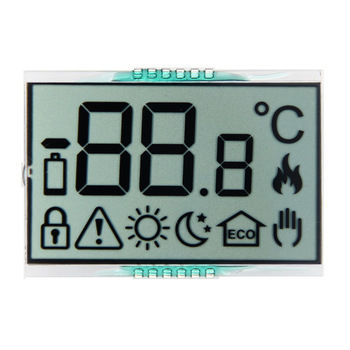

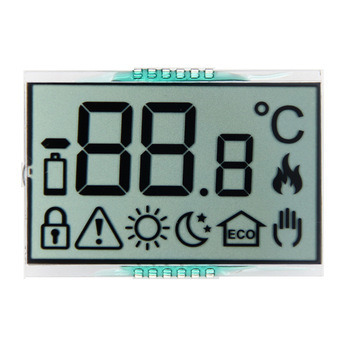

RYD2119TM01 Custom Segment LCD Display Object Body Temp Indicator Zebra Connector 3.0V Drive
Λεπτομέρειες:
| Τόπος καταγωγής: | ΚΙΝΑ |
| Μάρκα: | Royal Display or ODM/OEM |
| Πιστοποίηση: | SGS, ROHS |
| Αριθμό μοντέλου: | RYD2119TM-01 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | Διαπραγματεύσιμος |
|---|---|
| Τιμή: | διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | Κουζίνα, καφέ, EPE, δίσκος κυψέλης. |
| Χρόνος παράδοσης: | 15-25 εργάσιμες ημέρες |
| Όροι πληρωμής: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Δυνατότητα προσφοράς: | 300 χιλιάδες τεμάχια/μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Μοντέλο: | RYD2119TM-01 | Τύπος εμφάνισης: | TN, θετικός, μεταδιδόμενη |
|---|---|---|---|
| Σύνδεση: | σύνδεσμος ζέβρας | Περιγράψτε το αμυδρό. (Περίπου): | 26.20 (1) x 11.55 (h) x 8.00 (t) mm |
| Ενεργή περιοχή (περίπου): | 24.20 (1) x 10.20 (h) mm | Θερμοκρασία αποθήκευσης.: | -10°C ~ +60°C |
| Επισημαίνω: | Custom Segment LCD Display,LCD Display Zebra Connector,3.0V Drive LCD Module |
||
Περιγραφή προϊόντων
RYD2119TM01 Custom Segment LCD Display Object Body Temp Indicator Zebra Connector 3.0V Drive
The famous brands display we have
BOE: Large-scale production, AMOLED, all-size dominance. You could get BOE LCD Modules from us, or customize display here using BOE glass.
AUO: High-quality TFT displays, perfect for many automotive and industrial scenarios. You could share product drawing or part number with us, we will check for lead time and quotation for you.
Innolux: Both glass only or original displays are available here.
Tianma: Provide abundant solutions for industrial and custom displays.
Waveshare: It's embeded solutions integrator/ reseller.
E-paper displays: E-ink, Good display, DKE or other e-paper display brands.
If you are looking for more cost-effective or some products that are EOL, you could ask for recommendations, we will send you quotation and lead time based on your requirements.
Product Description
| Item | Description |
| Model | RYD2119TM-01 |
| Display Type | TN, Positive, Transmissive |
| Connection | Zebra Connector |
| Drive Mode | 1/40 Duty, 1/3 Bias |
| Viewing Direction | 6 O'clock |
| Operating Voltage | 3.0V |
| Operating Temp | 0°C ~ +50°C |
| Storage Temp | -10°C ~ +60°C |
| Outline Dim | 26.20 (L) x 11.55 (H) x 8.00 (T) mm |
| Active Area | 24.20 (L) x 10.20 (H) mm |
Our Advantages
Over 10-year expert in LCD modules, 20,000m² own factory; 12-month product warranty
OEM/ODM and customization services available, Professional R&D team and overseas sales team
100% inspection before shipment; fast delivery time; Items carry RoHS, CE and SGS marks
Products widely used in instruments and handheld devices, and the medical and automotive industries
Application
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
FAQs
ABOUT TFT LCD DISPLAY
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.
Product Overview

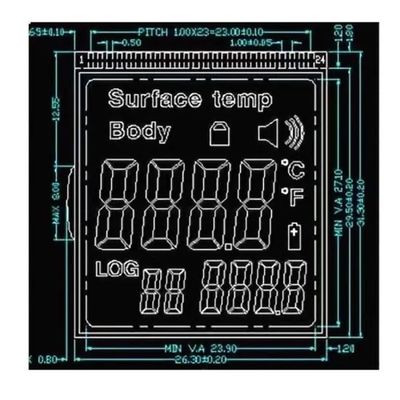

The RYD2119TM01 is a custom segment Liquid Crystal Display (LCM) specifically designed for thermometers and other portable medical devices. It employs a TN positive display mode (light background with dark segments) and a transmissive structure, ensuring clear and legible content, including dedicated icons for "Object Temperature" and "Body Temperature." The module uses a Zebra Connector for electrical interfacing, featuring a compact structure and very low power consumption, making it ideal for battery-powered consumer and medical-grade temperature measurement products.
Features
Broad selection of off the shelf products
Sunlight readable options available
Capacitive and Resistive options available for every display
Most products are kept in stock and can ship same day
Multiple interfaces available
Customizable FPC cables, LED backlights, and bezels
